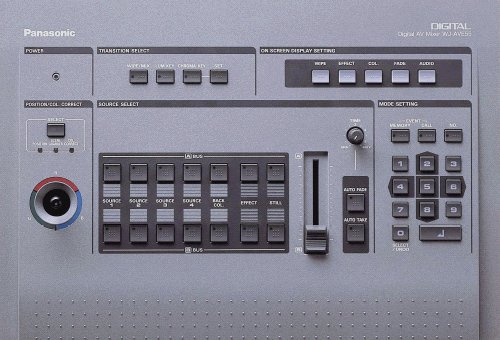

Panasonic WJ-AVE55 :

PC Control program :

• Directly control WJ-AVE55 unit from a PC using the serial in jack
• No more menu on screen, multiple key stroke or number to remember
• Works on any PC with Excel and a Serial (RS232) plug
• Need the RS232 Active X to be installed in the PC

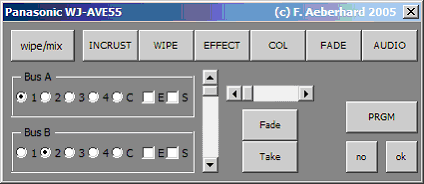

• All WJ-AVE55 functions set on graphical windows
• 24 user programmable buttons (with multiple functions ! )




Download :

• The Excel control program datasheet (XLS 1.0M : panels, parameters, informations)
• and explain (DOC sorry it's in French ! )
• The RS232 ActiveX (ZIP 3M, enable Excel to RS232 send-receive)
• and explain (PDF 0.6M)
• The AVE55 manual (PDF 1.5M)
• The AVE55 service manual (PDF 1.0M)

Contact :

• fred (at) a2m2.ch (French or English)
• Program in real usage
